rincian produk

Rumah > Produk >

Motor Perjalanan Excavator

CX9030/SH200A1 SH200A2 HD700-7 Travel motor 164484A1

Semua Kategori

Suku Cadang Final Drive Excavator

CX9030/SH200A1 SH200A2 HD700-7 Travel motor 164484A1

Nama merek:	TGFQ
Nomor Model:	CX9030/SH200A1 SH200A2 HD700-7
MOQ:	1
harga:	675.00USD
Detail Kemasan:	NNER PACKING: Bungkus dengan film plastik, label yang jelas untuk setiap item. KEMASAN LUAR: Kotak K
Ketentuan Pembayaran:	L/C,T/T,D/P,D/A

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tipe Rem Ayun:

Rakitan pelat multi-cakram

Tipe Motor:

Motor Perjalanan Ekskavator

katup pencegah terbalik:

Desain katup satu arah

Dimensi Bantalan:

ID 45mm x OD 85mm x 19mm L

Menyediakan kemampuan:

10 BUAH / Bulan

Deskripsi Produk

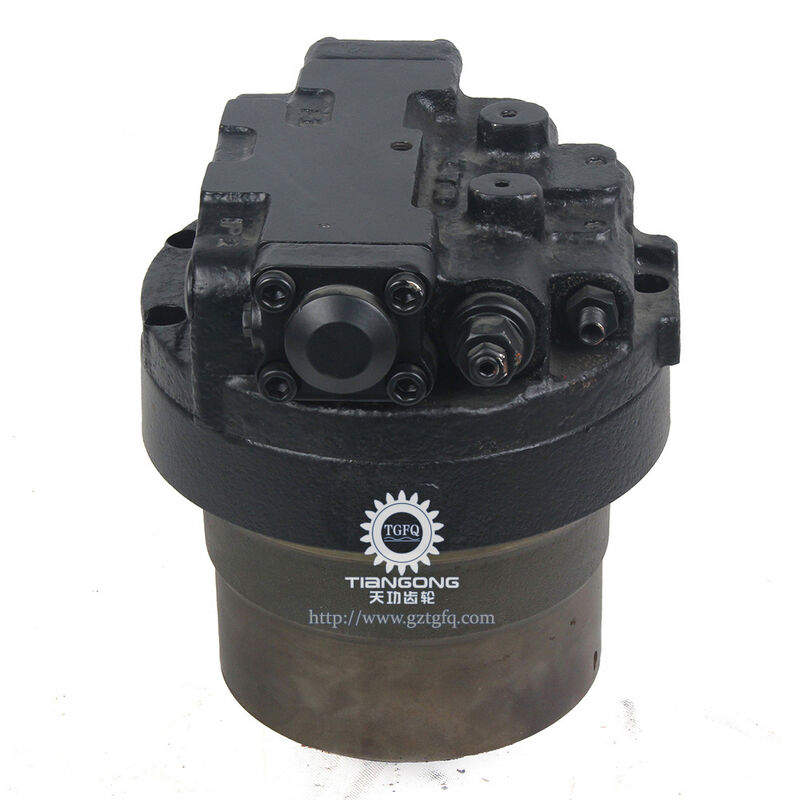

CX9030/SH200A1 SH200A2 HD700-7 Travel Motor 164484A1

Product Overview

As a high-grade replacement spare part for heavy-duty excavators, this travel drive model is professionally optimized and precisely calibrated to perfectly fit the CX210C/SH210-5 specification models. Differing from conventional standard hydraulic motor assemblies, this unit adopts upgraded hydraulic transmission technology and integral reinforced structural craftsmanship. It is purpose-built for rigorous heavy-load construction conditions, effectively delivering stable output performance, extended service lifespan and improved overall operation reliability. Boasting excellent compatibility and superior comprehensive performance, it serves as a cost-effective premium replacement solution for original equipment parts.

Safety Features

Reverse-Prevention Valve System

The motor and mounting group incorporates a built-in reverse-prevention valve that eliminates unintended reverse rotation, preventing operational errors and safety hazards.

One-way valve design ensures hydraulic oil flows in only one direction
Prevents motor reversal due to external forces or hydraulic fluctuations

This safety feature is critical during heavy lifting operations where reverse rotation could cause load drops and serious accidents. The high-flow capacity valve maintains normal motor operation and response speed while providing reliable performance under high hydraulic pressure and frequent use conditions.

Product Specifications

Compatible Models	CX9030/SH200A1 SH200A2 HD700-7
Category	Excavator travel motor
Brand	TGFQ
Part Numbers	164484A1
Packing	Wooden Case
Delivery Time	1-3 days after payment confirmation
Shipping Methods	By Sea, Air, or Express

Quality Assurance

Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.

Hydraulic Motor Applications

Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.

Product Images

Travel Motor Parts Breakdown

Parts List - Assembly 1

Pos.	Part No	Qty	Parts name
.	164484A1	[2]	MOTOR, HYDRAULIC
1.	NSS	[1]	NOT SOLD SEPARAT
2.	861-12060	[13]	BOLT,M12 x 1.75 x 60mm
3.	155215A1	[1]	O-RING
4.	160592A1	[2]	SPRING
5.	NSS	[2]	NOT SOLD SEPARAT
6.	159955A1	[1]	OIL SEAL
7.	160597A1	[1]	BEARING, BALL,45mm ID x 85mm OD x 19mm W
8.	164454A1	[1]	SHAFT
9.	155950A1	[2]	BALL
10.	164482A1	[1]	TRAY
11.	NSS	[9]	NOT SOLD SEPARAT
12.	NSS	[1]	NOT SOLD SEPARAT
13.	NSS	[1]	NOT SOLD SEPARAT
14.	NSS	[1]	NOT SOLD SEPARAT
15.	155631A1	[3]	COTTER PIN
16.	160203A1	[1]	SPRING SEAT
17.	160590A1	[1]	SPRING
18.	158113A1	[1]	COLLAR
19.	160103A1	[1]	RING, SNAP
20.	156326A1	[3]	PLATE
21.	160610A1	[3]	PLATE
22.	159956A1	[1]	SEAL,184.2mm ID x 191.5mm OD x 5mm Thk
23.	160498A1	[1]	RING
24.	160200A1	[1]	PISTON
25.	160330A1	[1]	PORT
26.	160398A1	[1]	BEARING, BALL
27.	155200A1	[1]	O-RING
28.	160266A1	[8]	SPRING
29.	160591A1	[8]	SPRING
30.	REF	[1]	INSTRUCTION
31.	160097A1	[4]	COTTER PIN
32.	155578A1	[1]	PIN
33.	154451A1	[4]	O-RING
34.	155479A1	[5]	PLUG
35.	155961A1	[1]	NOT SOLD SEPARAT

Warehouse & Inventory Capacity

Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.

Frequently Asked Questions

Can I order a sample for testing first?

Yes, we welcome sample orders for testing and evaluation.

How do I place an order?

Simply provide the model and quantity you need. We will issue a proforma invoice, and upon payment confirmation, your order will be processed. Preparation time varies based on order complexity.

Do you have your own factory?

Yes, we operate our own manufacturing facility with 23 years of specialized experience in the excavator gear industry.
